FAQs

Setup and Example Models and Data

library(macpan2)
library(ggplot2)
library(dplyr)
library(broom.mixed)
options(macpan2_verbose =  FALSE)

library(macpan2)
si = mp_tmb_model_spec(
    before = S ~ 1 - I
  , during = mp_per_capita_flow(
        from     = "S"         ## compartment from which individuals flow
      , to       = "I"         ## compartment to which individuals flow
      , rate     = "beta * I"  ## expression giving _per-capita_ flow rate
      , abs_rate = "infection" ## name for _absolute_ flow rate = beta * I * S
    )
  , default = list(I = 0.01, beta = 0.2)
)
print(si)
#> ---------------------
#> Default values:
#> ---------------------
#>  matrix row col value
#>       I          0.01
#>    beta          0.20
#>
#> ---------------------
#> Before the simulation loop (t = 0):
#> ---------------------
#> 1: S ~ 1 - I
#>
#> ---------------------
#> At every iteration of the simulation loop (t = 1 to T):
#> ---------------------
#> 1: mp_per_capita_flow(from = "S", to = "I", rate = "beta * I", abs_rate = "infection")
library(ggplot2)
library(dplyr)
example_data = (si
 |> mp_simulator(time_steps = 50, outputs = "infection")
 |> mp_trajectory()
)
incidence_example = (example_data
 |> mutate(value = 100 * value)
 |> pull(value)
)

Naming Convensions

Why is the package called `macpan2`?

This macpan2 package grew out of the McMasterPandemic project. Over the years the people involved in that project started calling it macpan, and macpan2 is the successor. There is no package called macpan.

Why do most of the functions start with `mp_`?

The mp stands for mac-pan. The idea is to make it easy to see in scripts what functions come from macpan2 and what functions come from other packages.

Why do some of the functions start with `mp_tmb_`?

The tmb part refers to the TMB package, on which macpan2 is built. We hope to one day use other computational engines (e.g., stan), at which point users will be able to see what computational engine is being used in their scripts. But for now tmb is the only computational engine and so the only thing indicated by mp_tmb_ is that you are using a function that is intended to be specific to computations with TMB. Functions that do not start with mp_tmb_ should be engine-agnostic and able to be used with any engine when and if such engines are supported.

Coding Style

What does `|>` mean?

We use the base R pipe operator throughout our examples. Please read this link for details.

Why do I see weird symbols at the start of lines?

In many of our examples we start lines with characters that many people put at the end of lines, such as the commas, plus signs and the base R pipe. These characters tell R how the code on the rest of the line is to combined with previous lines. We prefer to put these characters at the start of lines because it makes it slightly easier to comment lines out. Note that for this approach to work you need to wrap these continued expressions in parentheses. See the quickstart guide for examples of this style.

Calibration Details and Outputs

What model fitting approach does `macpan2` use?

We fit models by finding the values of parameters at the peak of a posterior distribution. This approach is sometimes called maximum a posteriori (MAP) estimation. This approach allows us to get approximate Bayesian uncertainty estimates by approximating the posterior distribution as a multivariate Gaussian centered at the peak obtained by MAP. One is able to declare that parameters be considered random effects, which means that they are integrated out of the posterior distribution using the Laplace approximation. Using this approach allows us to reduce the dimensionality of the posterior distribution used in MAP by only optimizing over the fixed effect parameters.

This approximate posterior distribution can be used to obtain confidence / credible intervals for any continuous function of model variables. The two main examples of this are as follows.

Confidence intervals on fitted parameters using mp_tmb_coef(., conf.int = TRUE).
Confidence intervals on fitted trajectories using mp_trajectory_sd()

This approach to computing confidence intervals using Gaussian approximations to the posterior is a special case of the delta method that is implemented in TMB, which is described here.

Example calibrations of varying levels of complexity.

What likelihood and prior distribution assumptions does `macpan2` make?

You are free to declare any value in the model to be a trajectory or parameter. Trajectories are compared with observed data to produce a likelihood component (e.g., case reports are distributed with a negative binomial distribution with dispersion parameter 1) and parameters are used to produce a component of the prior distribution (e.g., the transmission rate is log normally distributed with mean 0.2 and standard deviation 1). Available distributional assumptions and settings are described here, but inspecting the examples linked to in the previous FAQ will be more useful for figuring out how to use this functionality.

Can I hack `macpan2` to use MCMC esimation?

Yes.

Can I get a new model specification with fitted parameters as defaults, from a calibrated calibrator object?

Coming soon!

Plotting Simulated Trajectories

How can I plot simulated trajectories?

This question is answered in the quickstart guide.

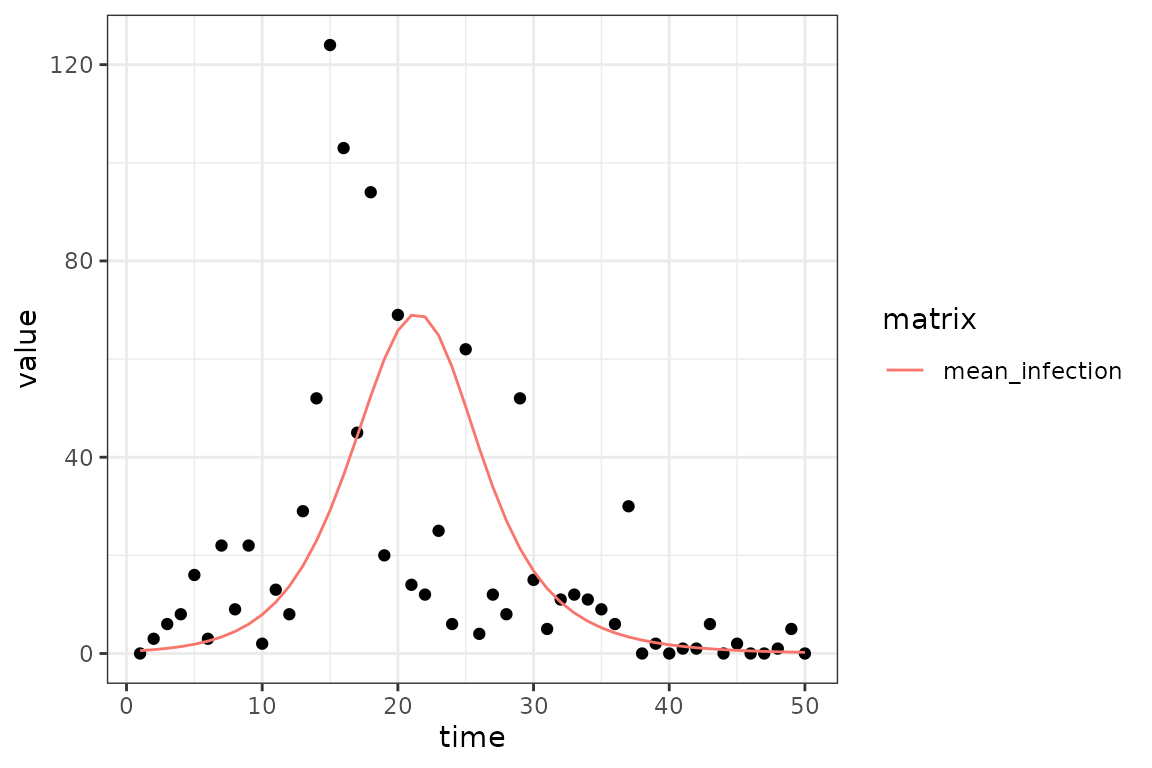

How can I plot a calibrated model with the observed data used in the calibration?

This is my favourite way to do it.

fitted_data = mp_trajectory(model_calibrator)
(observed_data
  |> ggplot()
  + geom_point(aes(time, value))
  + geom_line(aes(time, value), data = fitted_data)
  + theme_bw()
)

Calibration Troubleshooting

Should I worry about `NA/NaN function evaluation` warnings?

The optimizer will sometimes give warnings like this.

Warning messages:
1: In (function (start, objective, gradient = NULL, hessian = NULL,  :
  NA/NaN function evaluation

This is usually nothing to worry about, though you should take note of it. Typically this warning indicates that the optimizer tried parameter values that led the objective function (i.e., the negative log posterior density) to be non-numeric. Usually, the opimizer is smart enough (if it is possible) to get back on track. The key thing to watch out for is whether the optimizer converged, which can be explored using the mp_optimizer_output() function that is illustrated in this article.

What should I do if I do not converge?

It depends on the reason for non-convergence. The optimizer tries to give you information about this, and you can get this information using the mp_optimizer_output().

How do I increase the number of iterations that the optimizer takes?

When non-convergence results because the optimizer reaches the maximum number of iterations that it was allowed to take, you can increase this number (TODO: show example of how). Sometimes however, running out of iterations can (but not always) be a sign that there is not very much information in the data about the model parameters being estimated.

Parameter Estimation and Uncertainty

What can I do when my confidence intervals overlap zero for a parameter that should be positive?

You should use mp_tmb_insert() to transform your parameters so that they cannot go negative. TODO: link to an example.

Can I weight the importance of trajectories when fitting to more than one of them?

Yes, but it is not recommended until you are deep into it. TODO: give explanation and link to example.

Dynamical Instabilities

What is the best way for me to keep my state variables from going negative?

The hazard correction (mp_hazard()) works best in my experience. TODO: link to example.

Initial Conditions

My data start mid-epidemic so how do I know what the initial number of infectious individuals is?

This is a common situation as data collection often gets better after it is clear that there is a problem. But simulating epidemic models requires specifying the initial conditions of all of the state variables, and we do not have data on that. The basic idea for solving this problem is to fit the initial numbers of some of the state variables. But there are issues.

Let’s get an example. We manipulate the example infection data above by removing the first 25 time steps. The first issue is what to set the time steps as. We could just keep them as they were (i.e., 26:50) but this would be cheating because it would be preserving the time of the start of the epidemic as 25 time steps again, and in real life we do not know this information. So we pretend that the epidemic started 10 time steps before the data start.

start_date_offset = 10
in_progress_epidemic = (example_data
  |> filter(time > 25)
  |> mutate(
        value = rpois(length(value), 100 * value)
      , time = start_date_offset + row_number()
  )
)
max_time = max(in_progress_epidemic$time)
(ggplot()
  + geom_point(aes(time, value), data = in_progress_epidemic)
  + scale_x_continuous(limits = c(1, max_time))
  + theme_bw()
)

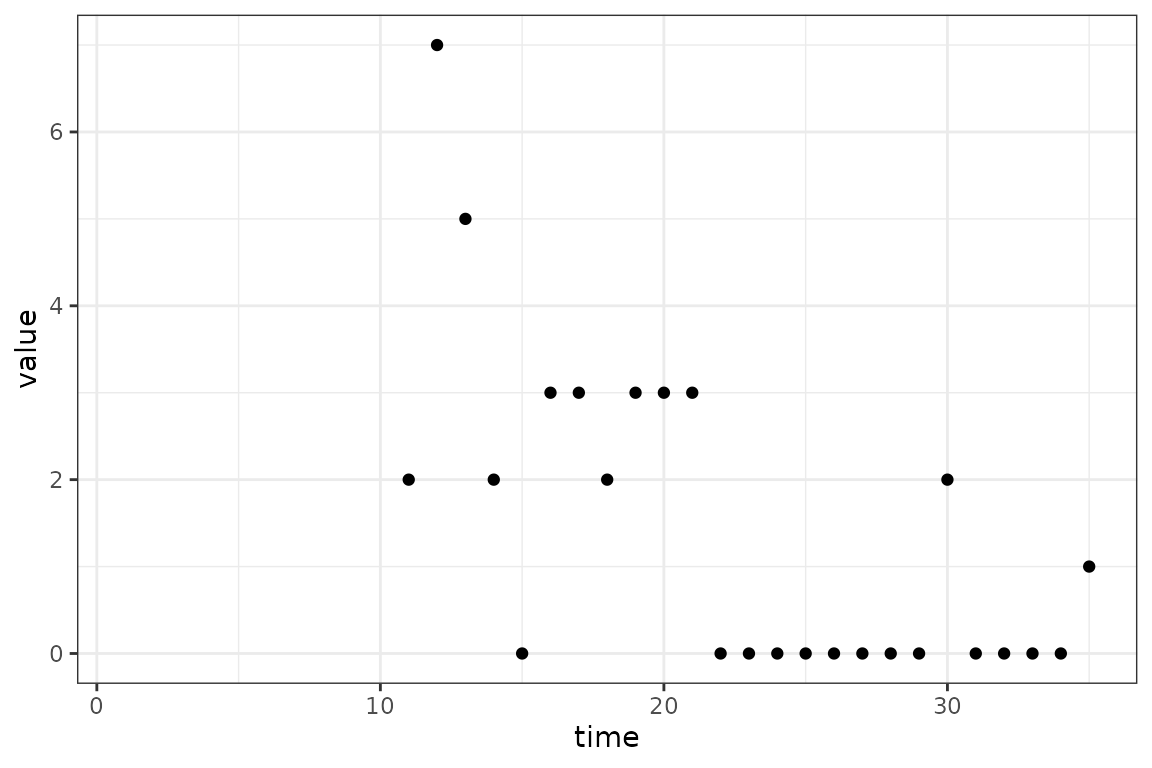

The blank space on the graph from time 1 to 10 represents the period of the outbreak without data. The exact size of this period is not crucial, only that it is long enough to let the dynamics of model settle down and become independent of the initial values of the state variables. Actually, for this simple SI model example we could even ignore this start-time issue, and just fit the initial values of the number of infectious individuals. But in models with many state variables it becomes very easy to specify initial conditions that the model wouldn’t go to naturally, resulting in dynamical instability. This instability can cause optimization problems because the optimizer might choose starting conditions that lead to instabilities and therefore bad fits.

But we will continue with the SI model to illustrate the general idea with relative simplicity. There are a few key ideas in the code below.

We express the initial number of infectious individuals as N times a logistic function of a new parameter, logit_prop_I, giving the proportion of the population that is infectious on the logit scale. This transformation allows us to fit logit_prop_I while ensuring that the initial value of I stays between 0 and N.
We use the mp_sim_bounds function to assert that the first time step is 1 and the last time step is max_time, which in this case is 35.
We give a prior distribution for logit_prop_I

calibrator = ("starter_models"
 |> mp_tmb_library("si", package = "macpan2")
 |> mp_tmb_insert(phase = "before"
    , expressions = list(I ~ N / (1 + exp(-logit_prop_I)))
    , default = list(logit_prop_I = 0)
  )
 |> mp_tmb_calibrator(
      data = in_progress_epidemic
    , traj = list(infection = mp_neg_bin(disp = 1))
    , par = list(
        beta = mp_normal(location = 0.4, sd = 1)
      , logit_prop_I = mp_normal(location = 0, sd = 1)
    )
    , time = mp_sim_bounds(1, max_time, "steps")
 )
)
mp_optimize(calibrator)
#> Warning in (function (start, objective, gradient = NULL, hessian = NULL, :
#> NA/NaN function evaluation
#> $par
#>     params     params
#> 0.09910844 0.55847313
#>
#> $objective
#> [1] 38.00748
#>
#> $convergence
#> [1] 0
#>
#> $iterations
#> [1] 9
#>
#> $evaluations
#> function gradient
#>       14       10
#>
#> $message
#> [1] "relative convergence (4)"
cc = mp_tmb_coef(calibrator, conf.int = TRUE)
print(cc)
#>       term    mat row col default  type   estimate  std.error   conf.low
#> 1   params   beta   0   0     0.2 fixed 0.09910844 0.04234644 0.01611094
#> 2 params.1 prop_I   0   0     0.5 fixed 0.63609918 0.42942417 0.04404283
#>   conf.high
#> 1 0.1821059
#> 2 0.9851457

We see that we are able to fit both the transmission rate, beta, and the initial proportion of infectious individuals, and get reasonable confidence intervals. Note that logit_prop_I has been automatically back-transformed to prop_I, but this functionality can be turned off by setting back_transform = FALSE in mp_tmb_coef. The plot below shows how the model is able to fit to the data without knowing the initial number of infectious individuals 10

fitted_data = mp_trajectory(calibrator)
(ggplot()
  + geom_point(aes(time, value), data = in_progress_epidemic)
  + geom_line(aes(time, value), data = fitted_data)
  + theme_bw()
)

Real data will not be as simple, but these principles will help.

Time Variation of Parameters

How can I use a known time series of values?

What if my time-series has missing values?

What can I do if I do not know the functional form of time-variation?

Under Reporting, Delayed Reporting, and Total Reporting

How should I account for under-reporting in `macpan2`?

How should I account for delayed reporting as well as under-reporting in `macpan2`?

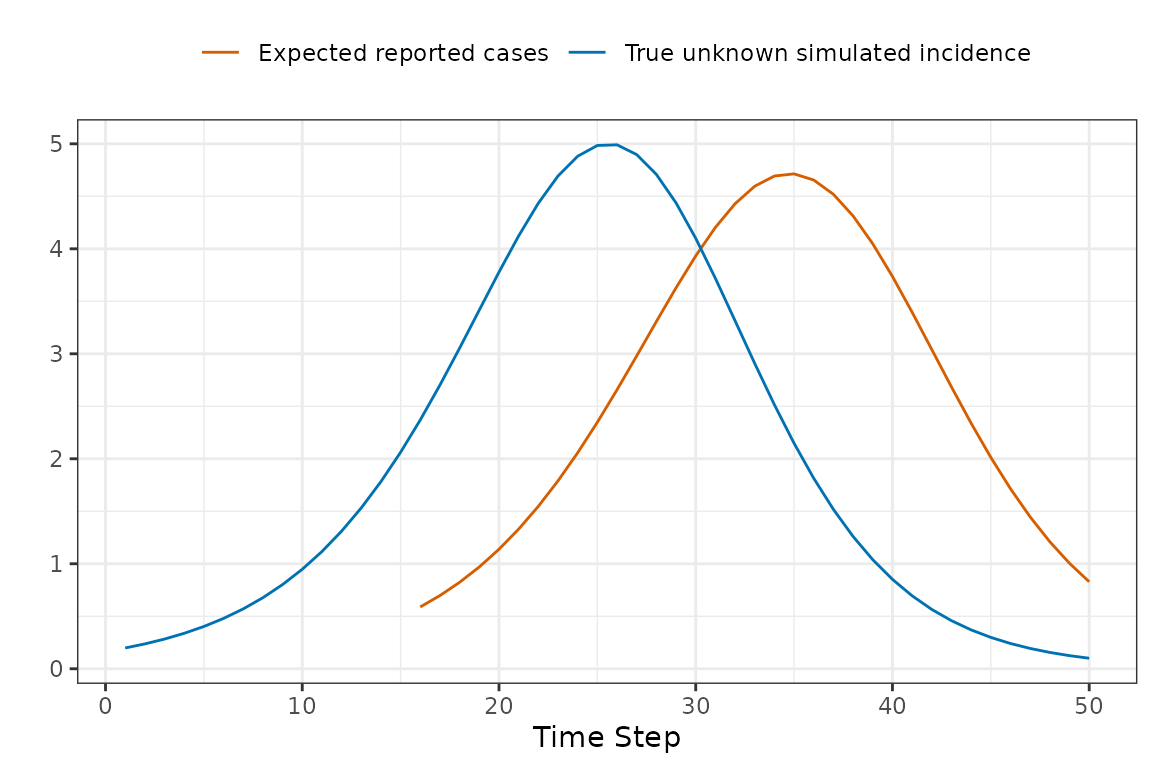

The challenge introduced by reporting delays is that we cannot compare the simulated incidence values from our model with observed case reports, because there is a reporting delay. The following toy example shows how the apparent peak in the data follows the simulations.

So before comparing the simulations with observed data, we use convolution to transform the simulated incidence values into a time series of reported cases that is expected by the model. Keep reading to find out specifically how this is done.

Now we can now compare the observed and expected reported cases in a manner that accounts for reporting delays.

Now to explain how the expected reported case curve is computed. In this method we assume that each new case waits a Gamma-distributed random amount of time before it is observed. The mean and coefficient of variation of this distribution can be fitted parameters. During the COVID-19 pandemic the McMaster group found that a Gamma distribution with mean delay of 11 days and coefficient of variation of 0.25 was a reasonable model.

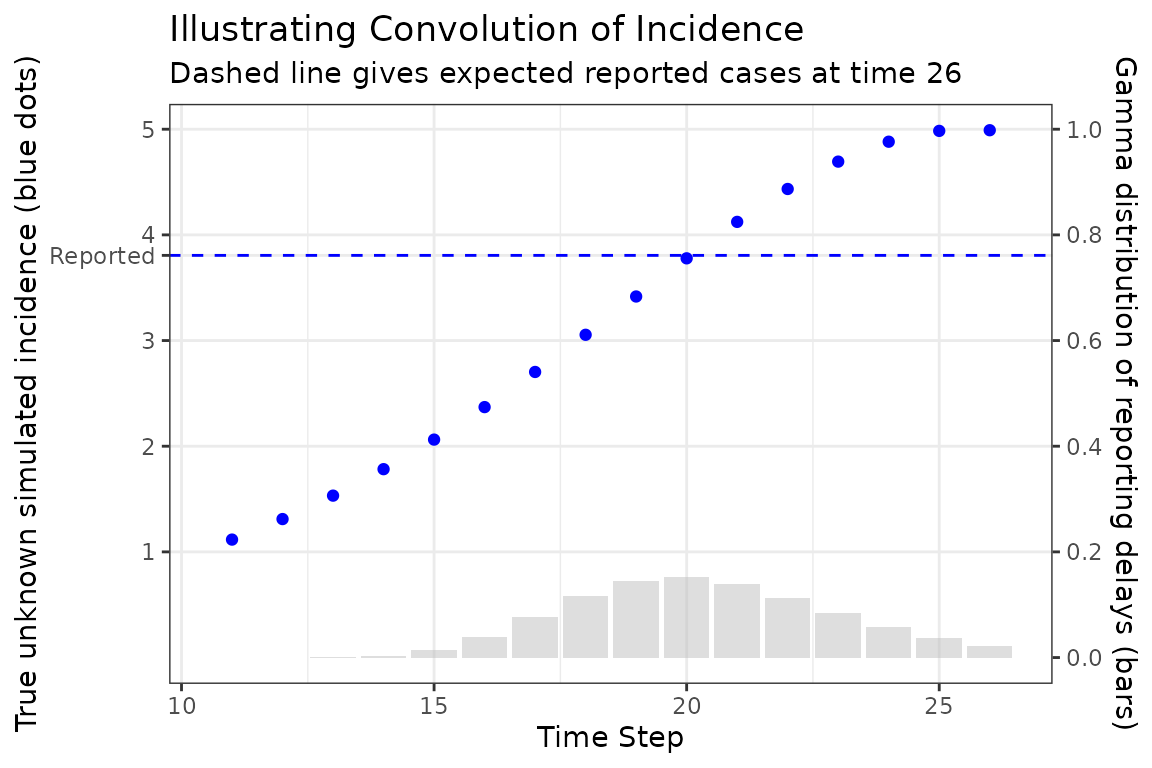

The following figure illustrates how a single expected case report is computed, in this case at time 26. The Gamma distribution of delay times is represented as bars giving the probability that a new case at a particular time is reported at time 26, which is given as the dashed horizontal line. Note how the reported number of cases is roughly near (but not identical) to the simulated number of cases at the peak of the delay distribution. This makes sense because we would expect most of our reports now to come from the highest probability time in the past.

In macpan2 we typically have a model that doesn’t account for delayed reporting and we want to update it to do so before fitting to data. One can use the mp_tmb_insert_reports() function for this purpose.

si_with_delays = (si
 |> mp_tmb_insert_reports(
      incidence_name = "infection"
    , mean_delay = 11
    , cv_delay = 0.25
    , report_prob = 0.1
    , reports_name = "reports"
 )
)

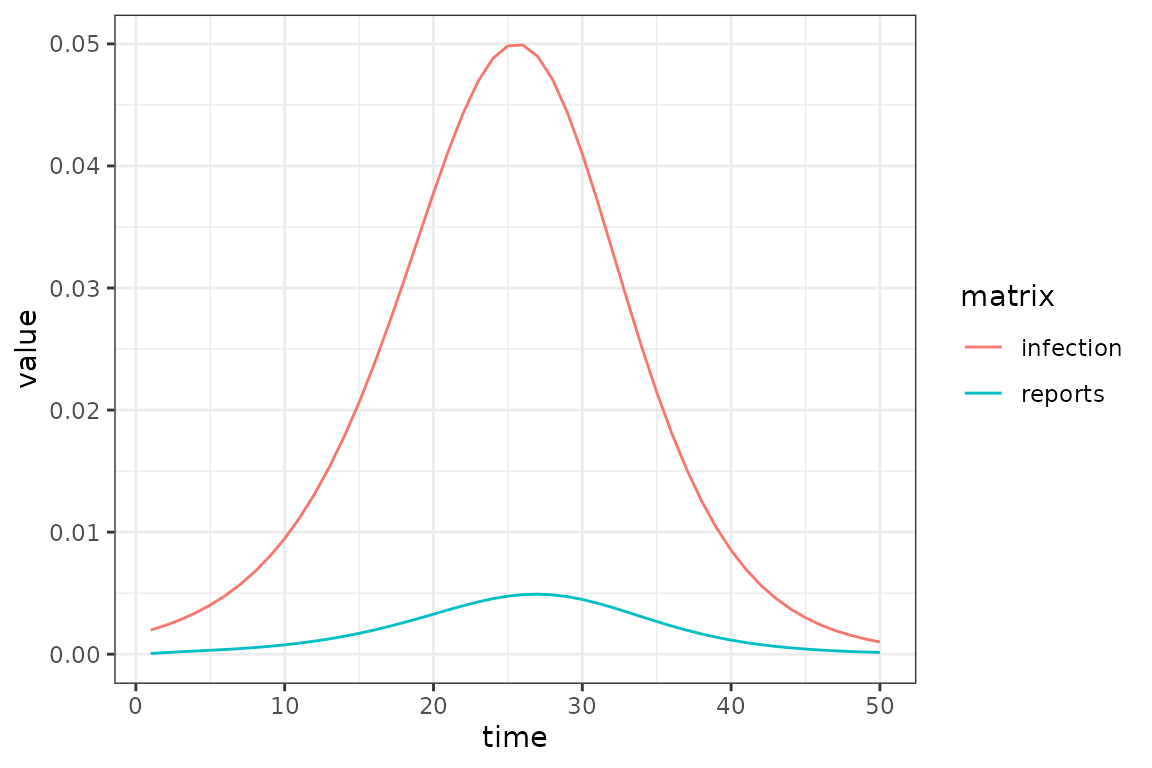

(si_with_delays
  |> mp_simulator(
      time_steps = 50L
    , outputs = c("infection", "reports")
  )
  |> mp_trajectory()
  |> ggplot()
  + geom_line(aes(time, value, colour = matrix))
  + theme_bw()
)

Note how this function allows accounting for under-reporting as well, by specifying a report_prob that is less than 1.

16: dist ~ pgamma(1:17, 1/(incidence_cv_delay), incidence_mean_delay * (incidence_cv_delay^2))
17: delta ~ dist[1:16] - dist[0:15]
18: kernel ~ incidence_report_prob * delta/sum(delta)
19: reported_incidence ~ convolution(incidence, kernel)

Can `macpan2` use hidden Markov models to account for reporting bias?

Stochastic Simulation

How can I set the seed for the random number generator?

Why do I keep getting the same result even though my model has randomness?

What are the mathematical details of the Euler multinomial process error model?

The Euler-multinomial state update method assumes that the number of individuals that move from one box to another in a single time-step is a random non-negative integer, coming from a particular multinomial distribution that we now describe.

The probability of staying in the $i$ th box through an entire time-step is assumed to be the following (TODO: relate this to Poisson processes).

$p_{ii} = \exp\left(-\sum_j r_{ij}\right)$

This probability assumes that the $r_{ij}$ are held constant throughout the entire time-step, although they can change when each time-step begins.

The probability of moving from box $i$ to box $j$ in one time-step is given by the following.

$p_{ij} = (1 - p_{ii}) \frac{r_{ij}}{\sum_j r_{ij}}$

This probability is just the probability of not staying in box $i$ , which is $1 - p_{ii}$ , and specifically going to box $j$ , which is assumed to be given by this expression $\frac{r_{ij}}{\sum_j r_{ij}}$ .

Let $\rho_{ij}$ be the random number of individuals that move from box $i$ to box $j$ in one time-step. The expected value of $\rho_{ij}$ is $p_{ij} x_i$ . However, these random variables are not independent events, because the total number of individuals, $\sum_i x_i$ , has to remain constant through a single time-step (at least in the models that we are currently considering).

To account for this non-independence, we collect the $\rho_{ij}$ associated with a from compartment $i$ into a vector $\rho_i$ . We collect similar vector of probabilities, $p_i$ . Each $\rho_i$ is a random draw from a multinomial distribution with $x_i$ trials and probability vector, $p_i$ .

Once these random draws have been made, the state variables can be updated at each time-step as follows.

$x_i = x_i - \sum_j \rho_{ij} + \sum_j \rho_{ji}$

Note that we do not actually need to generate values for the diagonal elements, $\rho_{ii}$ , because they cancel out in this update equation. We also can ignore any $\rho_{ij}$ such that $r_{ij} = 0$ .

Under the SIR example we have a particularly simple Euler-binomial distribution because there are no branching flows – when individuals leave S they can only go to I and when they leave I they can only go to R. These two flows are given by the following distributions.

$\rho_{SI} \sim \text{Binomial}(S, p_{SI})$

$\rho_{IR} \sim \text{Binomial}(I, p_{IR})$

In models with branching flows we would have multinomial distributions. But in this model the state update is given by the following equations.

$S = S - \rho_{SI}$ $I = I - \rho_{IR} + \rho_{SI}$ $R = R + \rho_{IR}$

Can `macpan2` do the Gillespie algorithm

No. At least not without substantial hacking. The Euler Multinomial is used instead

More Process Error (incomplete)

set.seed(1L)
spec = mp_tmb_model_spec(
    before = list(
        R ~ vaxprop * N
      , S ~ N - I - R
    )
  , during = list(
        infection ~ reulermultinom(S, beta * I / N)
      , recovery ~ reulermultinom(I, gamma)
      , S ~ S - infection
      , I ~ I + infection - recovery
      , R ~ R + recovery
    )
  , default = list(
        vaxprop = 0.71111111
      , N = 1000
      , I = 10
      , beta = 1.25
      , gamma = 1.1
    )
)
(spec
  |> mp_simulator(
      time_steps = 10
    , outputs = "infection"
  )
  |> mp_trajectory_replicate(1L)
)
#> [[1]]
#>       matrix time row col value
#> 1  infection    1   0   0     2
#> 2  infection    2   0   0     2
#> 3  infection    3   0   0     1
#> 4  infection    4   0   0     3
#> 5  infection    5   0   0     2
#> 6  infection    6   0   0     0
#> 7  infection    7   0   0     0
#> 8  infection    8   0   0     0
#> 9  infection    9   0   0     0
#> 10 infection   10   0   0     0

vaxprop = 0.7
N = 1000
set.seed(10)
spec = mp_tmb_model_spec(
    before = list(S ~ N - I - R)
  , during = list(
        infection ~ reulermultinom(S, beta * I / N)
      , recovery ~ reulermultinom(I, gamma)
      , S ~ S - infection
      , I ~ I + infection - recovery
      , R ~ R + recovery
    )
  , default = list(
        N = N
      , R = round(vaxprop * N)
      , I = 10
      , beta = 1.25
      , gamma = 1.1
    )
)
sim = (spec
  |> mp_simulator(
      time_steps = 10
    , outputs = "infection"
  )
)
sim |> mp_trajectory_replicate(10)
#> [[1]]
#>       matrix time row col value
#> 1  infection    1   0   0     3
#> 2  infection    2   0   0     2
#> 3  infection    3   0   0     0
#> 4  infection    4   0   0     0
#> 5  infection    5   0   0     0
#> 6  infection    6   0   0     0
#> 7  infection    7   0   0     0
#> 8  infection    8   0   0     0
#> 9  infection    9   0   0     0
#> 10 infection   10   0   0     0
#>
#> [[2]]
#>       matrix time row col value
#> 1  infection    1   0   0     4
#> 2  infection    2   0   0     3
#> 3  infection    3   0   0     0
#> 4  infection    4   0   0     0
#> 5  infection    5   0   0     0
#> 6  infection    6   0   0     0
#> 7  infection    7   0   0     0
#> 8  infection    8   0   0     0
#> 9  infection    9   0   0     0
#> 10 infection   10   0   0     0
#>
#> [[3]]
#>       matrix time row col value
#> 1  infection    1   0   0     1
#> 2  infection    2   0   0     1
#> 3  infection    3   0   0     2
#> 4  infection    4   0   0     2
#> 5  infection    5   0   0     1
#> 6  infection    6   0   0     1
#> 7  infection    7   0   0     1
#> 8  infection    8   0   0     0
#> 9  infection    9   0   0     0
#> 10 infection   10   0   0     0
#>
#> [[4]]
#>       matrix time row col value
#> 1  infection    1   0   0     2
#> 2  infection    2   0   0     2
#> 3  infection    3   0   0     3
#> 4  infection    4   0   0     3
#> 5  infection    5   0   0     1
#> 6  infection    6   0   0     0
#> 7  infection    7   0   0     0
#> 8  infection    8   0   0     0
#> 9  infection    9   0   0     0
#> 10 infection   10   0   0     0
#>
#> [[5]]
#>       matrix time row col value
#> 1  infection    1   0   0     0
#> 2  infection    2   0   0     0
#> 3  infection    3   0   0     0
#> 4  infection    4   0   0     0
#> 5  infection    5   0   0     0
#> 6  infection    6   0   0     0
#> 7  infection    7   0   0     0
#> 8  infection    8   0   0     0
#> 9  infection    9   0   0     0
#> 10 infection   10   0   0     0
#>
#> [[6]]
#>       matrix time row col value
#> 1  infection    1   0   0     3
#> 2  infection    2   0   0     2
#> 3  infection    3   0   0     0
#> 4  infection    4   0   0     0
#> 5  infection    5   0   0     0
#> 6  infection    6   0   0     0
#> 7  infection    7   0   0     0
#> 8  infection    8   0   0     0
#> 9  infection    9   0   0     0
#> 10 infection   10   0   0     0
#>
#> [[7]]
#>       matrix time row col value
#> 1  infection    1   0   0     3
#> 2  infection    2   0   0     4
#> 3  infection    3   0   0     3
#> 4  infection    4   0   0     0
#> 5  infection    5   0   0     0
#> 6  infection    6   0   0     0
#> 7  infection    7   0   0     0
#> 8  infection    8   0   0     0
#> 9  infection    9   0   0     0
#> 10 infection   10   0   0     0
#>
#> [[8]]
#>       matrix time row col value
#> 1  infection    1   0   0     4
#> 2  infection    2   0   0     0
#> 3  infection    3   0   0     0
#> 4  infection    4   0   0     0
#> 5  infection    5   0   0     0
#> 6  infection    6   0   0     0
#> 7  infection    7   0   0     0
#> 8  infection    8   0   0     0
#> 9  infection    9   0   0     0
#> 10 infection   10   0   0     0
#>
#> [[9]]
#>       matrix time row col value
#> 1  infection    1   0   0     6
#> 2  infection    2   0   0     2
#> 3  infection    3   0   0     1
#> 4  infection    4   0   0     1
#> 5  infection    5   0   0     0
#> 6  infection    6   0   0     0
#> 7  infection    7   0   0     0
#> 8  infection    8   0   0     0
#> 9  infection    9   0   0     0
#> 10 infection   10   0   0     0
#>
#> [[10]]
#>       matrix time row col value
#> 1  infection    1   0   0     3
#> 2  infection    2   0   0     3
#> 3  infection    3   0   0     1
#> 4  infection    4   0   0     1
#> 5  infection    5   0   0     1
#> 6  infection    6   0   0     0
#> 7  infection    7   0   0     0
#> 8  infection    8   0   0     0
#> 9  infection    9   0   0     0
#> 10 infection   10   0   0     0

proc_err = rnorm(50)
spec = mp_tmb_model_spec(
    before = list(S ~ N - I - R)
  , during = list(
        mean_foi ~ beta * I / N
      , mean_infection ~ mean_foi * S
      , dev_foi ~ exp(proc_err[time_step(1)])
      , mp_per_capita_flow("S", "I", "dev_foi * mean_foi", "infection")
      , mp_per_capita_flow("I", "R", "gamma", "recovery")
    )
  , default = list(
        N = N
      , R = 0
      , I = 1
      , beta = 0.4
      , gamma = 0.2
      , proc_err = proc_err
    )
)
sim = (spec |> mp_hazard()
  |> mp_simulator(
      time_steps = 50
    , outputs = "infection"
  )
)
sim_infection = (sim
  |> mp_trajectory()
  |> mutate(value = rpois(length(value), value))
)

fixef = list(
    beta = mp_log_normal(location = 0.2, sd = 1)
  , gamma = mp_log_normal(location = 0.2, sd = 1)
)
ranef = list()
  #proc_err = mp_normal(location = 0, sd = 0.1)
#)
cal = mp_tmb_calibrator(
    spec = mp_tmb_update(spec, default = list(beta = 0.2, proc_err = rep(0, 50)))
  , data = sim_infection
  , traj = list(infection = mp_neg_bin(disp = 1))
  , par = fixef # mp_par(param = fixef, random = ranef)
  , outputs = "mean_infection"
)
mp_optimize(cal)
#> Warning in (function (start, objective, gradient = NULL, hessian = NULL, :
#> NA/NaN function evaluation
#> $par
#>    params    params
#> 0.5811725 0.2381576
#>
#> $objective
#> [1] 215.4921
#>
#> $convergence
#> [1] 0
#>
#> $iterations
#> [1] 10
#>
#> $evaluations
#> function gradient
#>       13       11
#>
#> $message
#> [1] "relative convergence (4)"
mp_tmb_coef(cal)
#>       term   mat row col default  type  estimate  std.error
#> 1   params  beta   0   0     0.2 fixed 0.5811725 0.03470795
#> 2 params.1 gamma   0   0     0.2 fixed 0.2381576 0.04467113

fit_infection = mp_trajectory(cal)
(ggplot()
  + geom_point(aes(time, value), data = sim_infection)
  + geom_line(aes(time, value, colour = matrix), data = fit_infection)
  + theme_bw()
)
